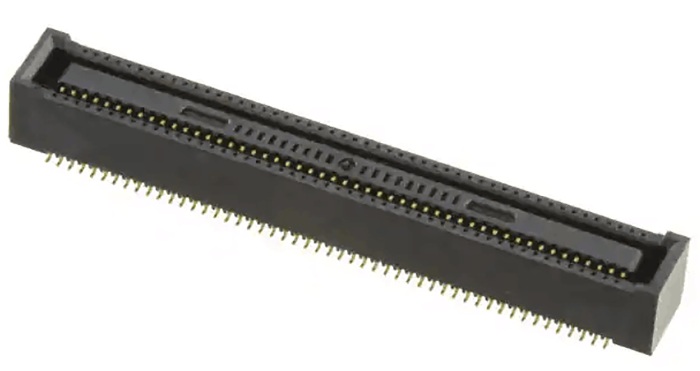

0.4mm Pitch BTB Female socket Connector
Specifications:
1. Current Rating:0.31A.
2.Voltage rating 30V AC/DC.
3.Withstanding voltage;100V AC/minute.
4.Characteristics:
5.Insulation Resistance: Min. 1000M ohms (initial)
6.Saltwater spray resistance(header and socket
mated: 24 hours,insulact resistance max.90m Ω
7. Contact Resistance: M ax. 900mΩ
8.Ambient temperature:-55℃ ~ +85℃
9. Storage temperature:-55℃~+88℃(product only);
40℃~+50℃(emboss packing).
10.Composite insertion force:Max.0.918N/contacts
X contacts(initial).
11.Composite removal force:Min.0.165N/contacts
X contacts.
12.Post holding force:Min.0.49N/contacts.
13.Insertion and removal life:50 times.
