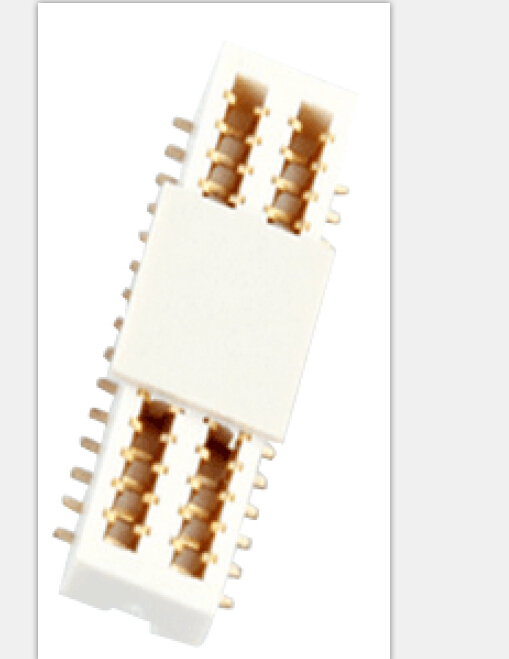

Model No.: BB0.8F-XXXXXX01
Interface Type: AC/DC
Housing: Plastic
Pin: Phosphor Bronze
Poles: Other
Application: Other
Certification: Other
Gender: Female
Material: Brass
Support Card Number: Other
Operating Frequency: High Frequency
Classification: Other
Доступно для предзаказа
Electrical
Current Rating:0.5A
Voltage Rating:50V AC/DC
Contact Resistance:50milliohm Max
Insulation Resistance:100Megohm Min
Operation Temperature:-20°C to +105°C
Housing Material:PA9T+30%G.F(UL94V-0)
Contact Material:Phosphor Btonze
Contact plating:Au or Sn over Ni
| Incoterm | CIF, EXW, FCA, FOB |
|---|---|
| Min. Order | 1000 Bag/Bags |
