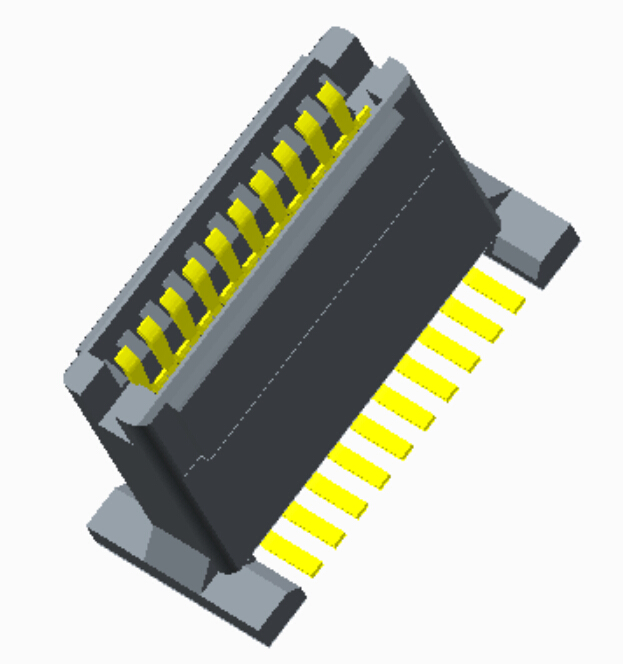

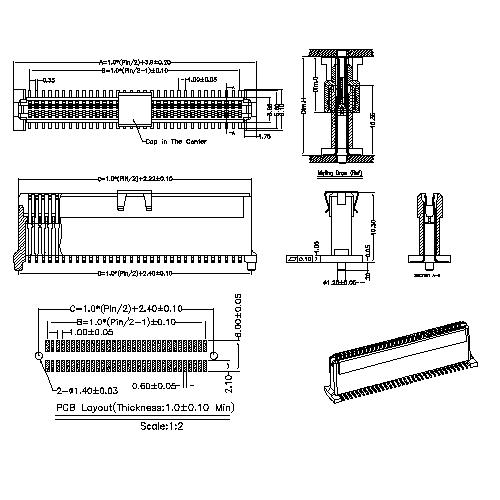

Product Information: 1.Series NO:1.0mm Board to Board connecter 2.mating Height:
H=12.65~14.65mm 3.Packing
T:Tube A:Tray
B:Bag U:Tube+CAP
R:tape&Reel
W:tape&Reel+CAP Specifications
Current rating:1.0A AC/DC
Voltage ratinge:250V AC/DC
Contact resistance:30m ohm Max.
Insulation resistance:1000M ohm Min.
Withstanding voltage:250V(r.m.s) for one Minute
Operating temperatre range:-40℃ to +80℃
Materials:
Insulator:high temp. plastic(LCP UL94V-0)
Color:natural color
Conact:phosphor bronze
plated:gold plated
