Описание

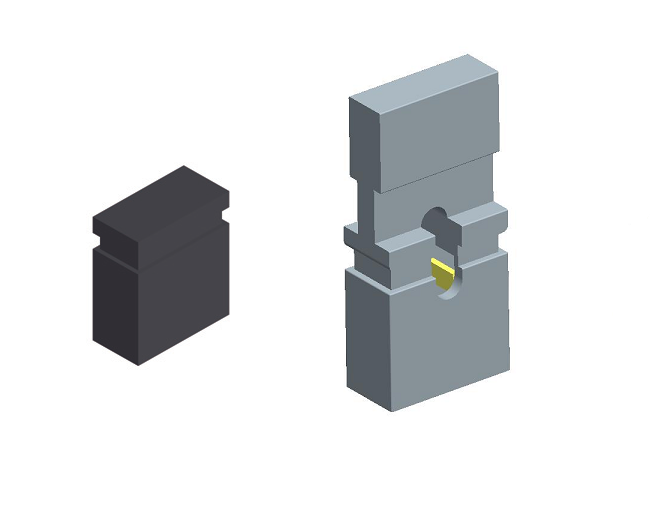

1.27mm Male Pin Headers & Min Jumper
NOTE:
MATERIAL:
1 INSULATOR:PBT+30%G.F (94V-0)
2 CONTACT PLATING:AU OR SN.OVER NI
3 CONTACT MATERIAL:PHORPHOS BRONZE
ELECTRICAL CHARACTERISTICS;
1 CONTACT RESISTANCE:20mΩ MAXIMUM
2 CONTACT CURRENT RATING:1.0AMP
3 DIELECTRIC WITHSTANDING VOLTAGE:1000V AC/MINUTE
4 INSULATION RESISTANCE 500mΩ MEGOHMS MIN
5 OPERATING TEMPEROTURE:-40°C ～ 105°C
