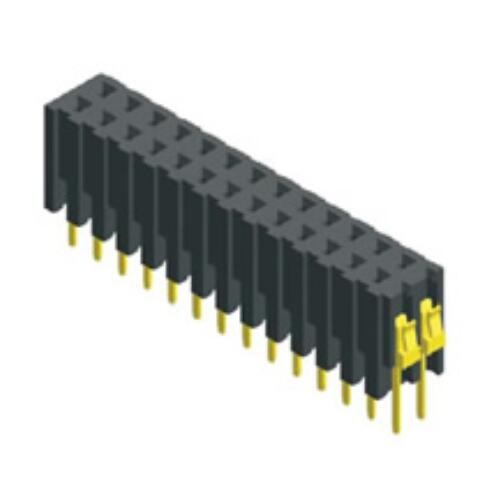

2.0 mm Female Header Dual Row Straight Type H7.2
2.00mm female header strips are commonly used as low cost connectors for customized cables or perforated prototyping PCBs.
The standard spacing is the same as on most solder-less breadboards and matches 2.00mm Pin Header strips.
Alternatives available with variations in these parameters: pins select variant.
We also carry right angle versions of some of these single row female headers.
Specification:
current rating
1.5Amp
insulation resistance
1000M ohms min
contact resistance
20M ohms max
dielectric withstanding
AC 500V
operating temperature
65 ℃~+125 ℃
contact material
brass
insulator material
PA6T, UL94V-0, black
