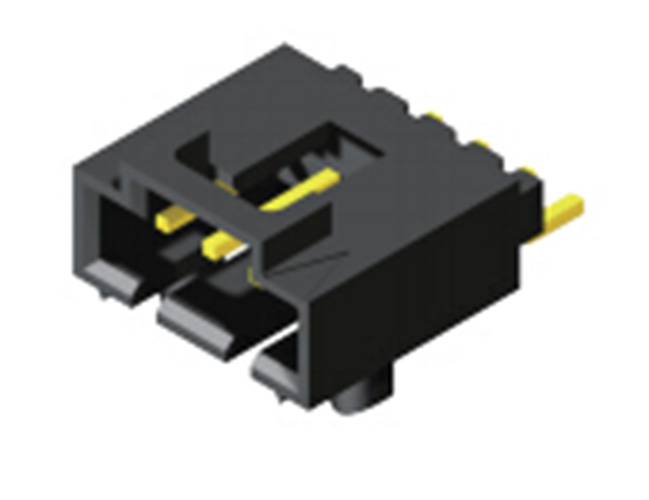

2.00mm pitch 180° Wafer Connector series
Specifications
Voltage Rating:300V AC/DC
Current Rating:2A AC/DC
Withstanding Voltage:1000V AC/Minute
Insulation Resistance:1000MΩ Min
Temperature Range：-25℃-+85℃
Contact Resistance：20mΩ Max
Material：Nylon 66 +30%GF UL94V-0
Brass With Tin-plated
Mate With：AH2018-2xNP
