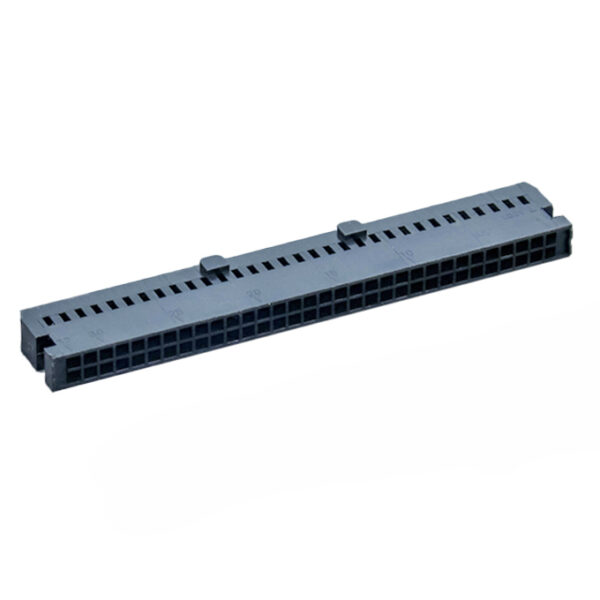

Product name:2.54mm Pitch Dual Row Dual Bump HousingSPECIFICATIONS
Current Rating：3A AC.DC
Voltage Rating：250V AC.DC
Withstanding Voltage：1500V AC/minute
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Min
Temperature range：-25℃-+85℃
Compliant with RoHs and REACH
HOUSING
Part NO.:AH2541-N-2xNP-4
Suitable：AT2541T-3 Series Terminal
Mates With：AW2541-3 Series Dual Row Pin Header
Material：PBT,UL94V-0
Color:Black
