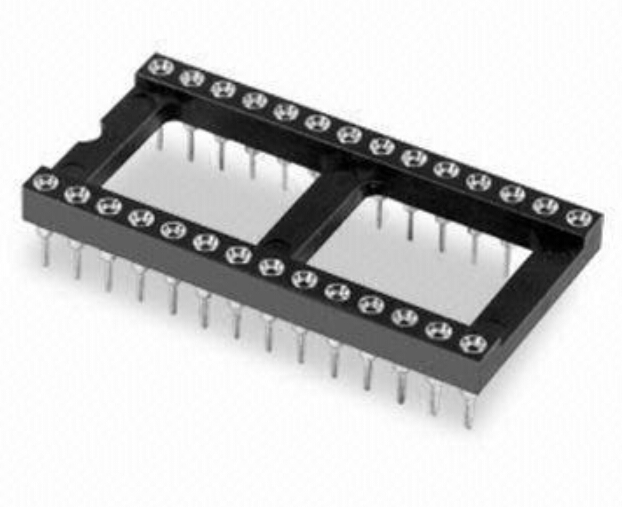

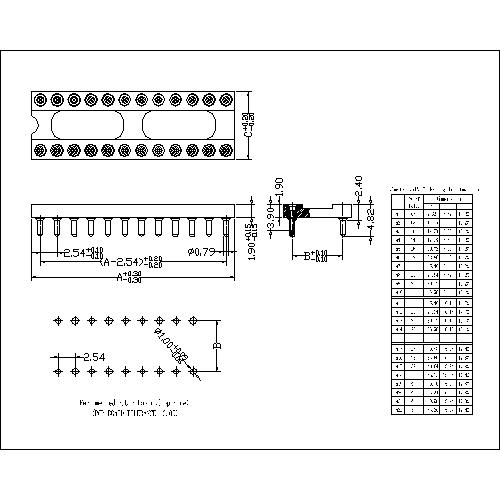

2.54mm Dual-in-line Socket Straight DIP (H=1.9 L=4.82) connector
Specifications:
Current Rating: 1.0Amp
Contact Resistance: 10MΩ max
Dielectric Strength: Min 1000 V RMS
Mechanical Life: Min 100 cycles
Operating Temperature: -40°C to +105°C
Sleeve: Brass CuZn36Pb3(C36000)
Contact Clip(4 finger): BeCu(C17200)
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0
06p~16P Insulators without center bar
36p~50P Insulators with center two bar
