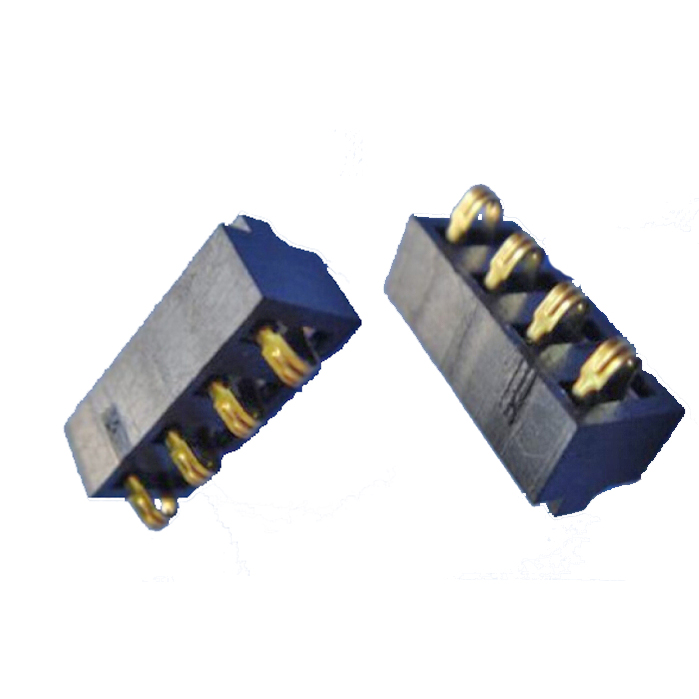

2.5mm Pitch SMT Type Battery Connector
Specifications
NOTES:
1.ELECTRICAL PERFORMANCES:
1=1.RATING CURRENT:1A.
1-2.RATNG VOLTAGE:250V AC
1-3.CONTACT RESISTANDINCE:30MΩ
1-4.INSULATION RESISTTANCE:1000MΩ
1-5.DIELECTRIS WITHSTANDING VOLTAGE: 1000V AC FOR 1 MINUTE.
2.MECHANICAL PERFORMANCE:
2-1.DURABILITY:5000TIMES.
2-2.NORMAL FORCE AT MATING POSITICN:80gMIN
2-3.OPERATION TEMPERATURE:-40°C～+85°C
INSULATOR: 30% GLASS-FILLED THERMOPLASTIC
LCP OR EQUIVALENT UL94V-O,BLACK.
