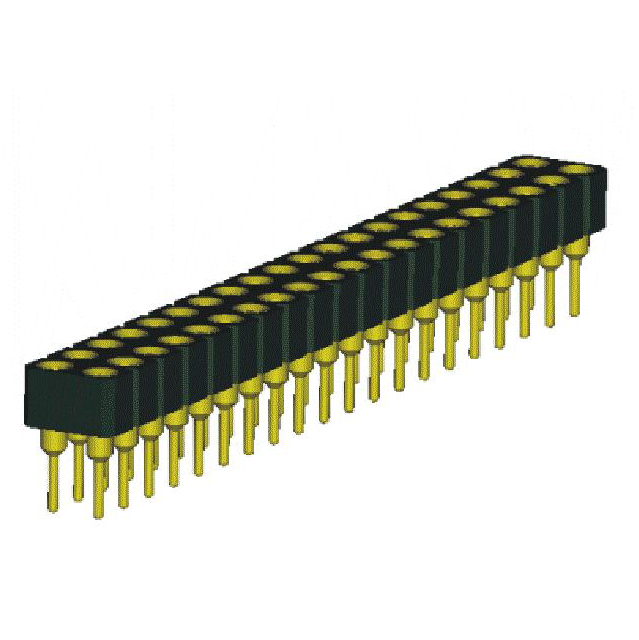

Machined Socket connectors 2.54 mm MFHES series

Name: Machined Socket connectors 2.54 mm MFHES series
SKU: MFHES-XXXXX01
Availability: BackOrder

₽0.00

Model No.: MFHES-XXXXX01
Poles: Other
Certification: Other
Gender: Female
Support Card Number: Other
Classification: Other
Application: Other
Material: Brass
Interface Type: Ac/Dc
Housing: Plastic
Pin: Brass
Operating Frequency: High Frequency

Доступно для предзаказа

Артикул: MFHES-XXXXX01 Категория: Механические разъемы с штырьками и гнездами

Описание
Детали

Описание

Machined Socket connectors 2.54 mm MFHES series
SPECIFICATIONS:
Insulator: PPS
Fiammability: UL 94V-0
Sleeve: Brass
Contact Clip(4 finger): Beryllium Copper
Mating Pin ∅: 0.40 to 0.56 mm
Forces: (Polished Steel Gauge ∅0.43mm)
Insertion : 3 N Typ.
Withdrawal: 1.5 N Typ.
Mechanical Life: Min 500 Cycles
Current Rating:3A
Contact Resistance: Max 10 mΩ
Dielectric Strength: Min 1000V RMS
