₽0.00
Model No.: PHCU01-XXD-AB-XXX
Interface Type: Ac/Dc
Housing: Plastic
Pin: Brass
Poles: Other
Application: Other
Certification: Other
Gender: Male
Material: Brass
Support Card Number: Other
Operating Frequency: High Frequency
Classification: Other
Доступно для предзаказа

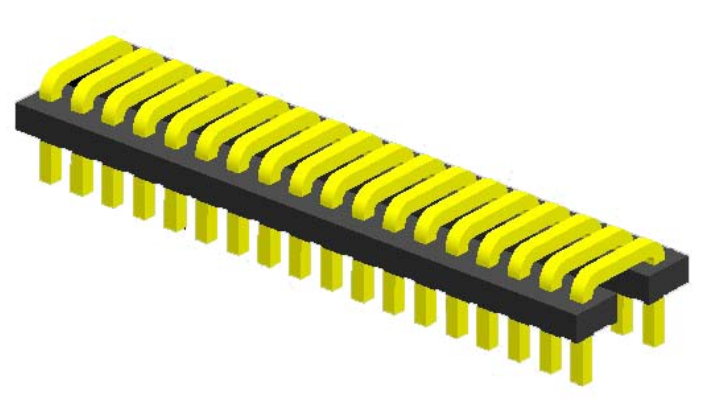

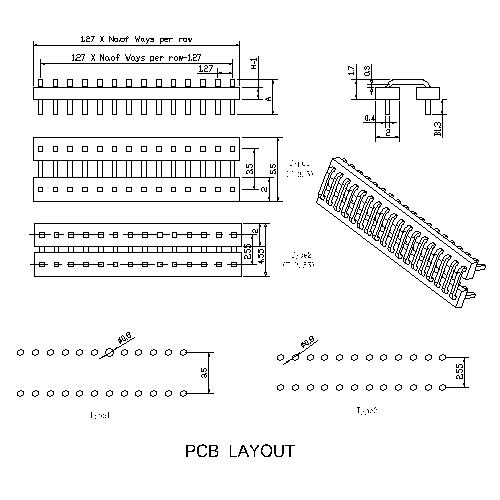

U-shaped Pin Header , PIN distance of 1.27mm, plastic
Specifications:
Current Rating: 1Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black
| Incoterm | CIF, EXW, FOB |
|---|---|
| Min. Order | 1000 Piece/Pieces |
